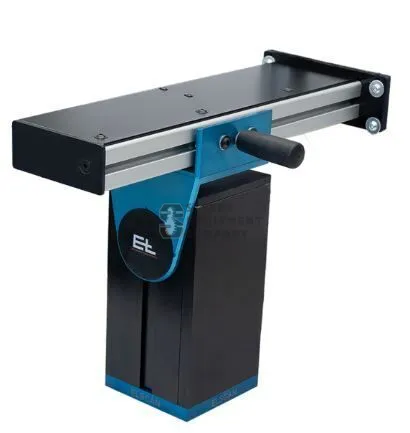

NEW ERHARDT+LEIMER ELSCAN OMS3 INSPECTION CAMERA - WEB MONITORING - AVAILABLE AS A MANUAL SYSTEM OR MOTORIZED SYSTEM - SPECIFICALLY DESIGNED FOR NARROW WEB APPLICATIONS
Camera 2 x 5 megapixels, color (2596 x 1944 pixels)
Field of view maximum W =100 x 75 mm (D= 28 x 21 mm)
Minimum field of view 12 x 7 mm
Resolution W = 438 μm, 660 dpi / D = 11 μm, 2,350 dpi
Flash Bright field
For web surface Paper, labels, hot and cold embossing films, clear-on-clear
Crossbeam with integrated controller
Length 300 - 700 mm
Operating width 180 - 580 mm
Actuating speed ≤ 350 mm/s
(motorized crossbeam)
Operating voltage 20 - 30 V DC
Current consumption 1.5 A (max.)
Nominal frequency 50 - 60 Hz
Connections 24 V, HDMI, 2x USB, Ethernet, 2x D-SUB 9-pin
Monitor
Operating voltage 90 - 240 V AC / 120 W (±10%)
Nominal frequency 50 - 60 Hz
Connection HDMI
Resolution 22" Full HD (1920 x 1080 pixels)
Monitor type Standard / Touch monitor
System data
Web speed Max. 400 m/min
Protection class IP 30 (optical range IP 50)
Ambient temperature +5 °C to +55 °C
Relative humidity 5 % to 95 % (non-condensing)
Synchronization Gearwheel, print mark, proximity switch, shaft encoder or machine signal
For narrow web applications up to a web width of 580 mm
Field of view of 100 x 75 mm
Patented "dualView" technology with 2 x 5 megapixel cameras
Top image quality and brilliant colour representation

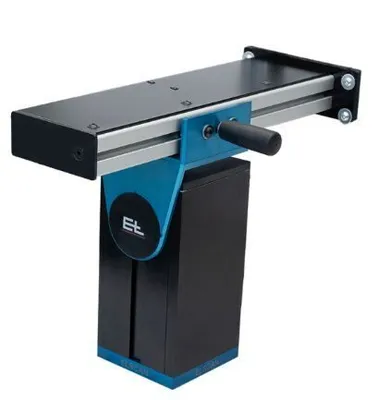

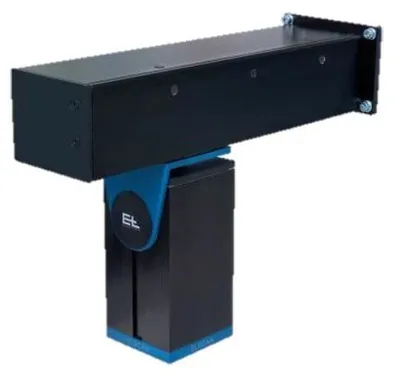

Crossbeam with manual or motorized camera positioning
Scan functions for controlled web monitoring
Operation via mouse, keypad, or touch monitor
Remote maintenance access
