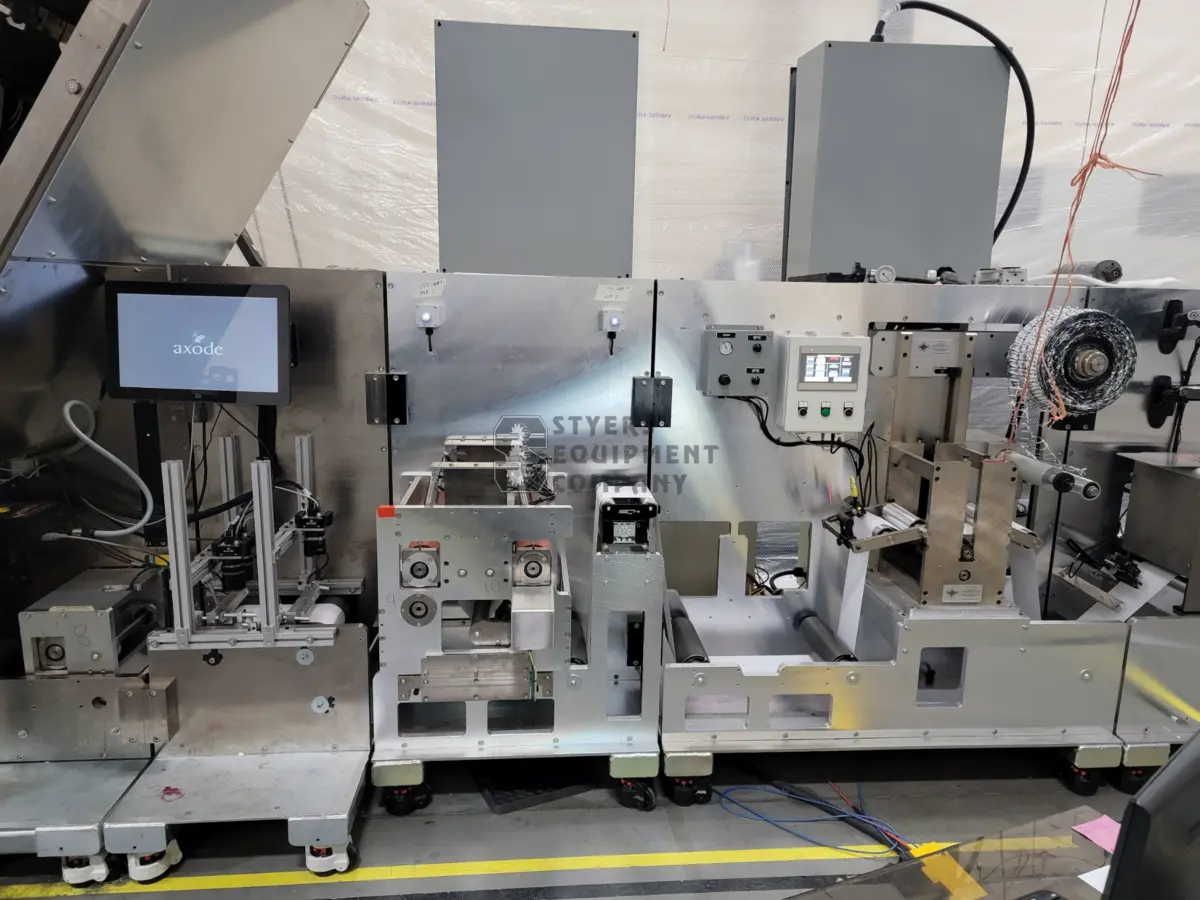

NEW PROTOTYPE & PRODUCTION DICEpress SECURITY PRINTER.
Unmatched Precision and Capabilities:
The DICEpress system represents the pinnacle of modern inkjet printing technology. Engineered for the most demanding applications, it features an exceptional drop placement accuracy of 5 microns and seamlessly integrates multiple advanced printhead technologies. The press is specifically equipped to produce highly complex security codes and sophisticated color-shift graphics (pseudo-holograms), making it an invaluable asset for advanced security printing operations.
End-to-End Production Efficiency:
Designed as a comprehensive, single-pass production solution, the system includes 14 integrated inline stations. From initial unwind, lamination, and corona treatment to high-precision die-cutting, dual machine vision inspection for strict quality assurance, and final rewind, the DICEpress offers a complete, turnkey workflow built for both accuracy and scale.
Print width: 150mm
Print speed: 30 meters per minute
Resolution: Variable with maximum 1200 DPI
Maximum inkjet colors: 8 Lamination capability in line
High power corona treater in line
Machine vision inspection for process control Magnetic cylinder die cutting
Machine vision for product verification
Inline slitting
