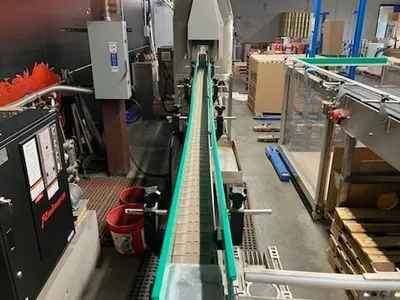

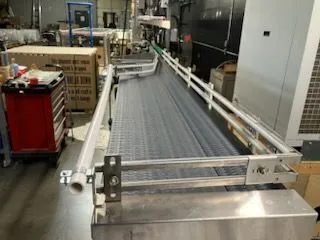

SHRINK SLEEVE APPLICATION LINE

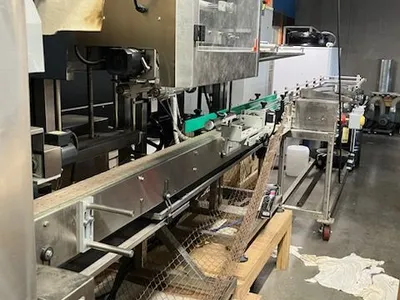

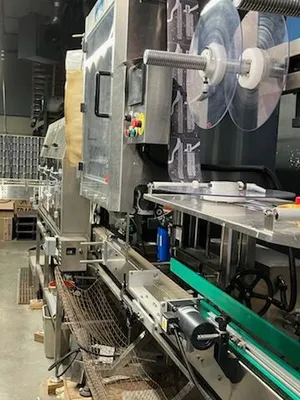

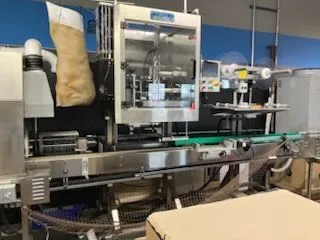

1. AFM LX-150 SHRINK SLEEVE APPLICATOR
Manufacturer: AFM
Model: SL-LX150-V2B
Description:
Single-head shrink sleeve labeling machine designed for moderate production environments and capable of applying full-body, middle-body, and tamper-evident shrink sleeves.
Specifications:
• Production Speed: 50–300 containers per minute
• Container Types: Round and oval plastic, glass, and metal containers
• Film Thickness Range: 35–70 microns
• Film Lay Flat Range: 40mm–240mm
• Cut Length Range: 30mm–200mm
• PLC controls with touchscreen HMI
• Servo-driven operation
• 304 stainless steel construction
• Power Requirements: 220V/3 Phase/20A or 480V/3 Phase/10A
• Approximate Dimensions: 43" L × 33.6" W × 84.6" H
Features:
• Dual unwind system
• Continuous operation capability
• Quick product changeovers
• Servo-driven placement and cutting system

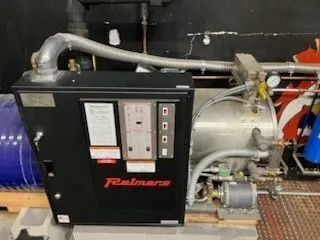

2. REIMERS RH-60 ELECTRIC STEAM BOILER
Manufacturer: Reimers Electra Steam, Inc.
Model: RH-60
Description:
Electric-fired steam boiler supplying steam for shrink sleeve tunnel operation.
Specifications:
• Heating Capacity: 60 KW
• Steam Production: Approximately 205 lbs/hr
• Operating Pressure: Up to 100 PSI
• Three-phase electrical service
• Carbon steel pressure vessel with stainless steel jacket
• ASME coded vessel
• National Board stamped
Approximate Dimensions:
• 3' W × 4' L

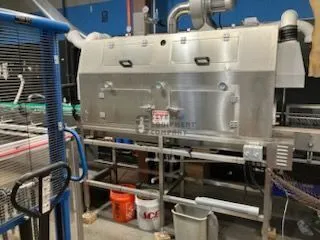

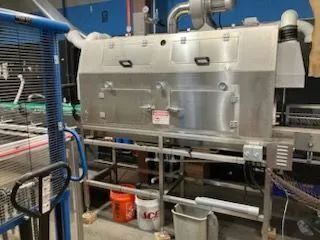

3. STEAM TUNNEL WITH CONVEYOR
Manufacturer: Taizhou Jiangyan Deli Meter Co.
Model: JYEE GS90 2K
Description:
Steam shrink tunnel complete with conveyor system and exhaust fan.
Specifications:
• Conveyor Width: 25 inches
• Overall Length: 27 feet
• Eight (8) steam nozzles
• Adjustable conveyor speed
• Exhaust fan included
• Electrical Requirements: Two (2) 208V Three-Phase 20-Amp Circuits

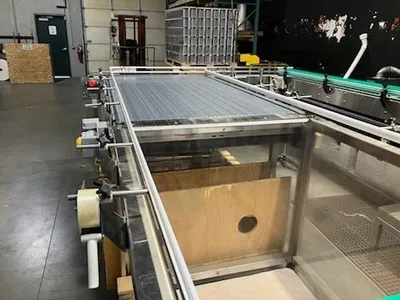

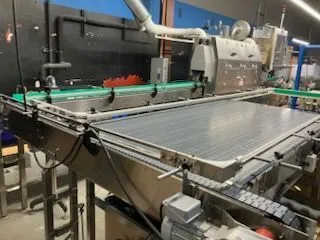

4. DEPALLETIZER CONVEYOR SYSTEM
Manufacturer: Codi Manufacturing
Description:
Automatic depalletizer conveyor system used for product infeed to shrink sleeve application line.
Specifications:
• Width: 2 feet
• Length: 10 feet
• Electrical Requirements: Two (2) 208V Three-Phase 20-Amp Circuits

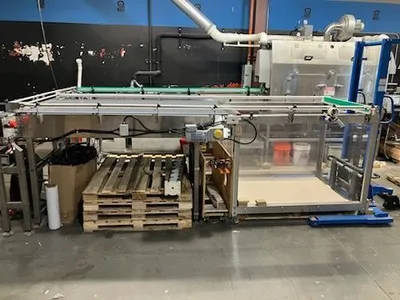

5. REPALLETIZER CONVEYOR SYSTEM WITH PALLET TANK
Manufacturer: Codi Manufacturing
Description:
Repalletizer conveyor system including pallet tank and associated material handling components.
Specifications:
• Width: 9 feet
• Length: 13 feet
• Electrical Requirements: Two (2) 208V Three-Phase 20-Amp Circuits
6. EOSLIFT HYDRAULIC ADJUSTABLE FORK STACKERS (QTY. 2)
Manufacturer: Eoslift
Specifications (Each Unit):
• Quantity Included: Two (2)
• Load Capacity: 2,200 lbs
• Lift Height: 63 inches
• Hydraulic Foot Pump Operation
• Dimensions: 66.3" L × 57.1" W × 81.1" H
